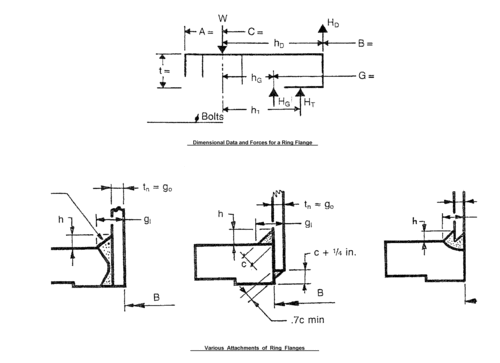

ESCE, Inc. has programmed the design of a ring flange following the rules of the ASME Code, Section VIII, Div.1, Appendix 2.
What could take two hours of grueling, error prone hand calculations can now be done in two minutes.
All the the drudgery has been taken out of the calculations, including the need for calculating any of the shape constants (K & Y).
All the user needs to do is input the data on page one of the template.
The program will provide the required flange thickness for operating and gasket seating conditions.

The program runs only in MathCad 2000 or later.
If you are interested in purchasing the program the total cost is $50.




Disclaimer:
Erie Shore Consulting Engineers, Inc. provides this software as is, without warranty of any kind, either expressed or implied. ESCE, Inc. shall not have any liability to the user other then the amount paid for the software. In no event will ESCE, Inc. be liable to the user for any lost profits or other incidental damages due to the use of the program or the users inability to use the software. It is the users responsibility to verify the results of the program.
This program runs in MathCad 2000. It is the users responsibility to purchase a licensed copy of MathCad 2000 of later. This program does not run in earlier versions of MathCad.
